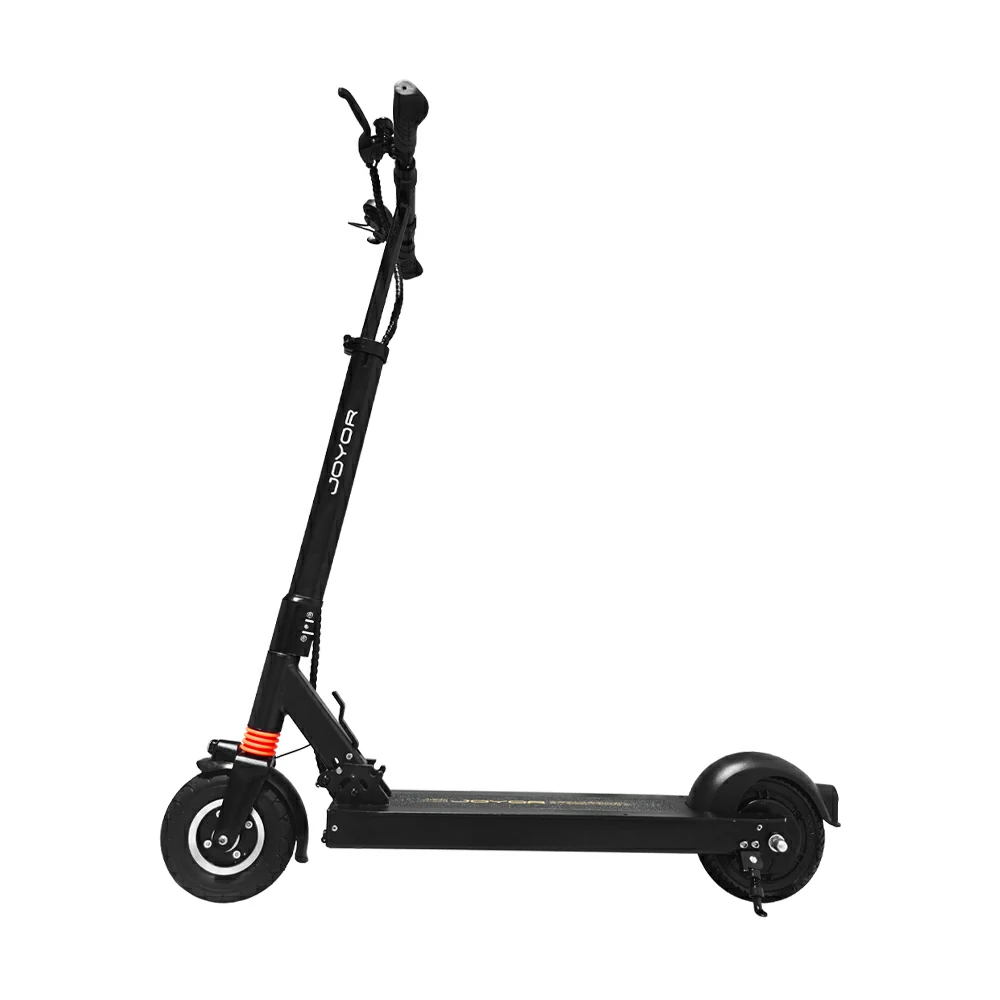

Joyor F5 Electric Scooter
Lightweight • Foldable • 500W Power
500W Motor Power
38 km Max Range
25 km/h Max Speed
14.2 kg Ultra Light
Sleek Urban Design
The Joyor F5 is designed for the modern commuter. Its clean lines and compact frame make it the perfect companion for city living.
500W Powerful Motor
Equipped with a 500W high-efficiency motor, it easily handles urban commuting and daily transportation needs, reaching a maximum speed of 25 km/h and a maximum climbing ability of 15°.
48V 10.4Ah Long-Lasting Battery
The built-in large-capacity lithium battery provides a range of approximately 38 km on a single charge. Charging time is fast, taking only about 5–5.5 hours to get back to full power.
Foldable Aluminum Alloy Frame
Weighing only 14.25kg, the high-strength aluminum alloy frame combines lightweight design with durability. The one-button folding design makes it easy to store in a car trunk or carry on the subway.
Front Suspension + 8-inch Tires
Equipped with a front spring suspension system and a unique combination of an 8-inch inflatable front tire for comfort and a solid rear tire to prevent flats. It effectively reduces road bumps for a smooth ride.
Safe Braking System
The rear drum brake system provides stable and reliable braking force. With a maximum load capacity of 120kg, the sturdy body ensures a safe and confident daily ride.
Technical Specifications
Brand / Model
Joyor / F5
Motor Power
500W
Max Speed
25 km/h
Battery
48V 10.4Ah
Max Range
38 km
Charging Time
5 - 5.5 hours
Frame Material
Aluminum Alloy
Tires
Front: 8" Air / Rear: 8" Solid
Suspension
Front Spring Shock Absorber
Brake System
Rear Drum Brake
Max Load
120 kg
Climbing Angle
15°
Net Weight
14.25 kg
Unfolded Size
98.5 x 54 x 117 cm
Folded Size
Estimated: 94 x 54 x 33 cm
Package Contents
1x Scooter, 1x Charger, 1x Manual
